DC48V T6 LED Lighting

DC48V T6 LED Lighting

Features:

  • Anti-Ammonia&Acid, Corrosion-Proof design to withstand the harsh barn environment.
  • Humidity & Shatter-proof, IP67 Waterproof with aviation glue which is used for car and plane production.
  • Different sizes of 60 cm-240 cm and colors of lamp cap can be customized.
  • Male&Female Fast Connect + Plug&Play, very easy installation.

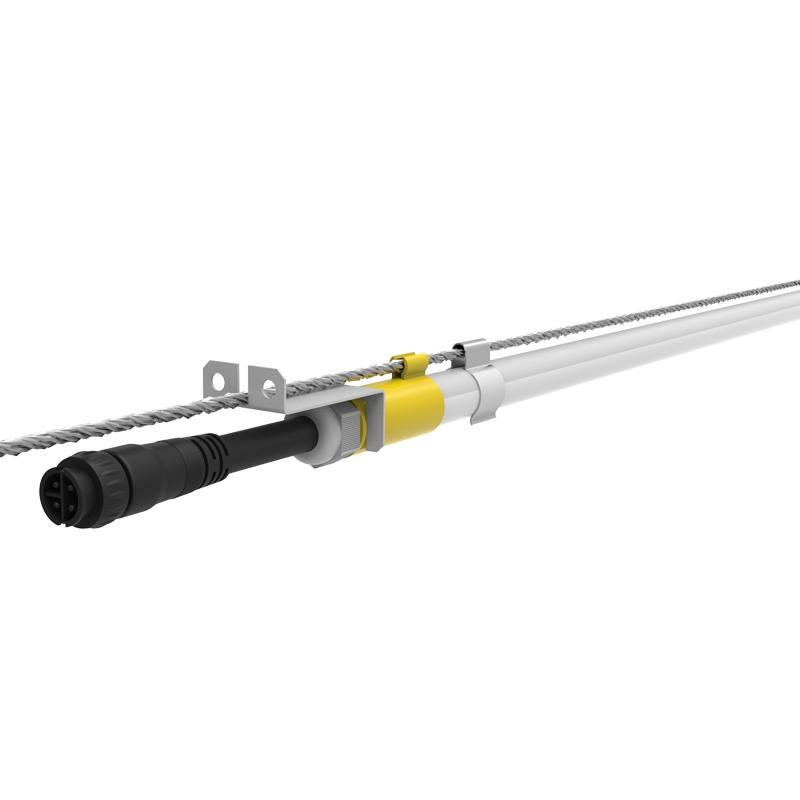

  • Lamp Cap PC Clip+ Stainless Steel Plate + Clamp of threefold strong fixation to the lamp.
  • 2.5mm² wires used to largely decrease the Voltage Drop and ensure uniform brightness of each lamp.
  • Red + White Two Colors Switchable to increase the Egg Production, avoid the Chick Pecking.
  • Compatible with AMB 100W/200W/300W 0-10v driver, Dimming Range from 0.5%-100% flicker-free.
  • Lifespan: >80,000hrs.
  • 5 years warranty time.

Description

Features:

  • Anti-Ammonia&Acid, Corrosion-Proof design to withstand the harsh barn environment.
  • Humidity & Shatter-proof, IP67 Waterproof with aviation glue which is used for car and plane production.
  • Different sizes of 60 cm-240 cm and colors of lamp cap can be customized.
  • Male&Female Fast Connect + Plug&Play, very easy installation.
  • Lamp Cap PC Clip+ Stainless Steel Plate + Clamp of threefold strong fixation to the lamp.
  • 2.5mm² wires used to largely decrease the Voltage Drop and ensure uniform brightness of each lamp.
  • Red + White Two Colors Switchable to increase the Egg Production, avoid the Chick Pecking.
  • Compatible with AMB 100W/200W/300W 0-10v driver, Dimming Range from 0.5%-100% flicker-free.
  • Lifespan: >80,000hrs.
  • 5 years warranty time.
Model No .PowerSizeEfficiency (LM/W)LuminousLight SourceCRILED Q’tyInput VoltageBeamFrequencyCCT
(mm)(LM)Angle(Hz)
Single white color(15cm 2*1 .5 mm² cable each side with male & female connector)
WP4J-04WDC4W1200120480SMD2835>801 12PCSDC48V (Without Driver)150°50/60
WP5J-05WDC5W1500120600SMD2835>80128PCS150°50/603000K
WP6J-06WDC6W1800120720SMD2835>80144PCS150°50/60
WP8J-06WDC6W2400120720SMD2835>80168PCS150°50/60
Single white color(15cm 2*2.5 mm² cable each side with male & female connector)
WP4J-04WDC4W1200120480SMD2835>801 12PCSDC48V (Without Driver)150°50/60
WP5J-05WDC5W1500120600SMD2835>80128PCS150°50/60
WP6J-06WDC6W1800120720SMD2835>80144PCS150°50/603000K
WP8J-06WDC6W2400120720SMD2835>80168PCS150°50/60
Red + White two colors Switchable(15cm 4*2.5mm² cable each side with male & female connector)
WP4J-2*4WDC2*4W1200White 120lm/w Red 50lm/w680SMD2835>8096PCSDC48V (Without Driver)150°50/60
WP5J-2*5WDC2*5W1500850SMD2835>80126PCS150°50/603000K
WP6J-2*6WDC2*6W18001020SMD2835>80144PCS150°50/60+625nm red
WP8J-2*6WDC2*6W24001020SMD2835>80168PCS150°50/60switchable
