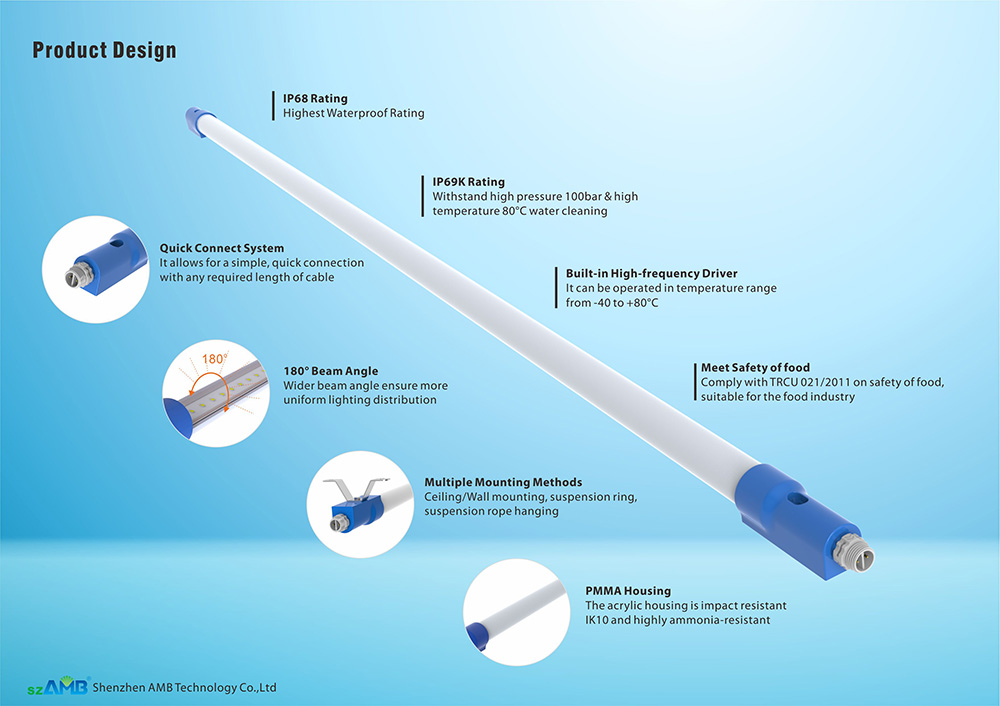

Features：
• IP69K & IP68
• Quick Connect System
• 180° Beam Angle
• Multiple Mounting Methods
• PMMA Housing
• Built-in High-frequency Driver
• Meet Safety of food

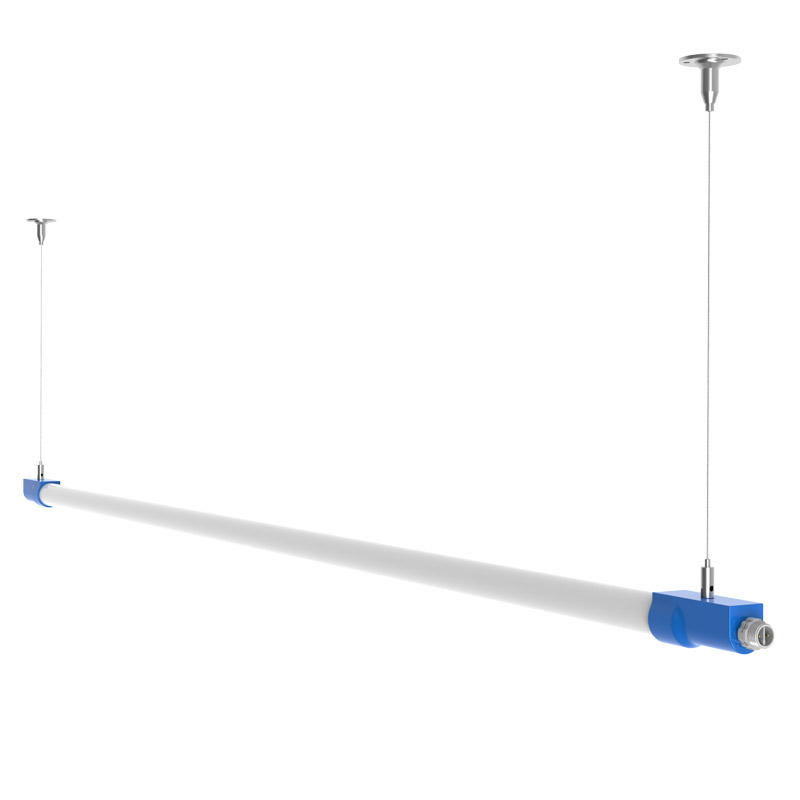

MHL Led Tube
Description
Product Brief
Our MHL LED tube is a perfect lighting solution for mushroom
house, it can be also used in livestock farming, food industry,
frozen storage, and other damp harsh areas.
Our MHL LED tube housing is made of strong PMMA which is
impact-resistant and ammonia-resisant. It passes IP68 highest
waterproof rating, and IP69K against high water pressure 100bar
& higher temperature 80°C. It can be even operated in temperature
range from -40 to +80°C. Our LED tube also complies with TRCU
021/2011 on safety of food, is therefore suitable for use
in the food industry.
| Model No | Dimension (mm) | Power | Luminous Efficiency | Lumen (LM) | CCT | CRI | Viewing Angle | Input Voltage(AC) | Light Source | LED Q’ty (pcs) | Frequency (Hz) |
| WP4U-T10-20WND | 1200 | 20 | 120lm/w | 2400 | 2700K-6500K | >80 | 140° | AC90-285V | SMD2835 | 72 | 50/60 |
| WP5U-T10-25WND | 1500 | 25 | 3000 | 120 | |||||||
| WP6U-T10-30WND | 1600 | 30 | 3600 | 144 | |||||||
| WP6U-T10-36WND | 1800 | 36 | 4320 | 192 |
